Simple Energy Saving Solutions
Lighting dimmers & twilight switches

The Hager dimmers can be used with any dimmable residential load: as the detection principles allow the control of lamps including dimmable CFL and LED. The phase control dimming method used provides opportunities for energy saving under dimmed conditions, by reducing the total power consumed. The “lamp learning” function further reduces the risk of a non detectable lamp and is an easy way for the end customer to adapt his product to the load without having to call the installer.

For the installer, it simplifies the ability to select a dimming function which is not dependant on the load technology the end-use will connect.The installer will also have the opportunity to adapt the product to suit via a dimming mode override feature. The EVN range of products supports the “green” technology initiative, as they can control “energy savings” loads. They also provide “energy-saving” dimming through use of a low standby consumption of only 0.2 W.

A typical energy saving application using DIN-Rail mounted dimmers.

'A large restaurant having two walls, made almost entirely from windows, has dimmable lighting installed to allow each dining area to be individually adjusted, by external pushbuttons, to the required light ambience. During daylight occupancy the areas nearest the windows are adjusted to use the benefit of natural daylight and hence save energy during this period.'

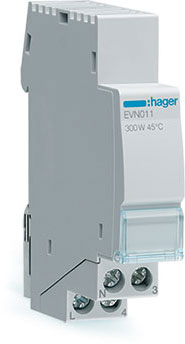

 1 Module Basic
EVN011
1 Module Enhanced
EVN012
2 Modules Basic
EVN002
2 Modules Enhanced
EVN004
Consumption
200mW
200mW
200mW
200mW
Incandescent
300W
300W
500W
500W
Halogen 230V (& energy saver)
300W
300W
500W
500W
Halogen LV Inductive
300VA
300VA
500VA
500VA
Capacitive Electronic Transformers
300W
300W
500W
500W
Dual Mode Transformers
300W
300W
500W
500W
Dimmable CFL
60W
60W
100W
100W
Direct Dimmable LED
60W
60W
100W
100W
Remote Command (ON/OFF/DIM)
N/L PB
N/L (luminous PB)
L PB
24-230V AC/DC
(230VAC Luminous PB)
Remote command (scene input)
No
No
No
24-230V AC/DC
(230VAC Luminous PB)
Manual config. of the dimming mode
No
Yes
No
Yes
Settable Dim Speed
No
No
No
Yes

Lighting Level Detection


Light detection products operate by sensing ambient light and switching on or off against a preset lux level or time. Generally the lighting will be unnecessary during certain periods of the day and therefore energy will be saved when controlled by these devices.

The following table shows the range of products available, which can be used for effective lighting control in public areas such as shopping malls, street lighting and illuminated display areas.
 Light Sensitive SwitchLight Sensitive ProgrammerAstrological Time Clock
Technical Characteristics
EE100
EE171
EE181
Width in modules 17.5mm
3
3
2
Operating Cycles
-
7 days
7 days
Program Steps
-
1 min
1 min
Voltage Supply
230V
230V
230V
No. of Channels
-
1
2
