Volta II Flush Mounting

Here we provide you with features & benefits, part numbers, product descriptions and dimensions for our Volta II Flush Mounting Enclosure range.

Features & Benefits

30% More Space
Cable Management
Circuit Plans
Miniature Spirit Level
Simple Flush Fixing
Removable Sides
Quick Cover Connection
Flat Version

Descriptions & Part Numbers

Enclosures
DescriptionQuick connect earth terminalsCat ref.
1 row, 12 modules
3 x 25mm² + 11 x 4mm²
VU12EP
2 rows, 24 modules
5 x 25mm² + 17 x 4mm²
VU24EP
3 rows, 36 modules
6 x 25mm² + 20 x 4mm²
VU36EP
4 rows, 48 modules
8 x 25mm² + 28 x 4mm²
VU48EP
Accessories
DescriptionCharacteristicsCat ref.
Key lock
Supplied with 2 keys replaces original catch
VZ302N
Connection assembly single phase 63A
2 x (3 x 16mm² + 4 x 10mm²)
270mm wide
VZ403
Connection assembly 63A
2 x (3 x 16mm² + 4 x 10mm²)
1 x (4 x 16mm² + 7 x 10mm²)
270mm wide
VZ428
Mounting kit for partition walls Comprising:
4 support clamps
4 screws
For mounting flush enclosures in partition walls
VZ405N
Quick Connect Terminals
DescriptionLength (mm)No: Quick Connect
Terminals 4mm²		No: Screw Terminals 25mm²Cat ref.
Neutral		Cat ref.
Earth
6 Connection Terminal Block
30
5
1
KN06N
KN06E
10 Connection Terminal Block
45
8
2
KN10N
KN10E
14 Connection Terminal Block
60
11
3
KN14N
KN14E
18 Connection Terminal Block
75
13
5
KN18N
KN18E
22 Connection Terminal Block
90
16
6
KN22N
KN22E
26 Connection Terminal Block
105
19
7
KN26N
KN26E
Pack of 10 Terminal Interconnectors

-
-
KN99N
KN99E

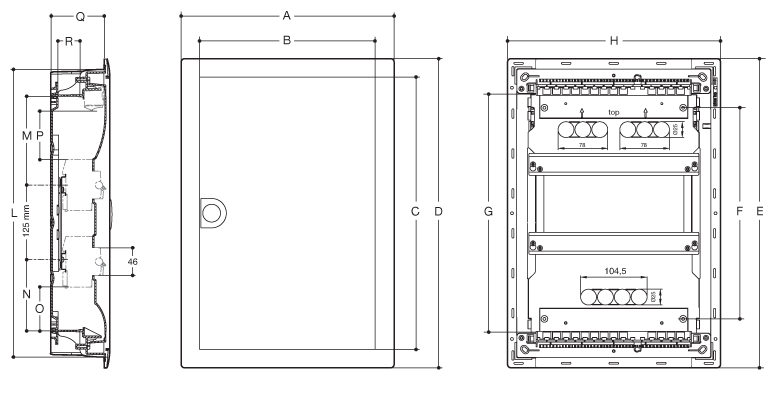

Volta II Flush Mounting Dimensions

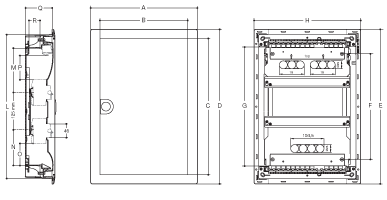

Click here for larger image
Part No:ABCDEFGHLMNOPQ R
VE12EP
348
288
296.5
356.5
335
185
224
330
321
130
104
56
64
89
40
VU24EP
348
288
445.5
505.5
484
334
373
330
470
144
114
66
79
89
40
VU36EP
348
288
570.5
630.5
609
459
498
330
595
144
114
66
79
89
40
VU48EP
348
288
695.5
755.5
734
584
623
330
720
144
114
66
79
89
40
















Dimensions in mm
