Enclosures
Vega Surface Mounting

Here we provide you with part numbers and product descriptions for our Vega Surface Mounting Enclosure range.

Descriptions & Part Numbers

Enclosures
DescriptionQuick connect earth terminalsCat ref.
Plain door		Cat ref.
Glazed door
1 row, 18 modules
4 x 25mm², 14 x 4mm²
VB18B
VB18R
2 rows, 36 modules
7 x 25mm², 25 x 4mm²
VB36B
VB36R
3 rows, 54 modules
10 x 25mm², 34 x 4mm²
VB54B
VB54R
Accessories
DescriptionCharacteristicsPack qtyCat ref.
Key lock for Vega Enclosures
Supplied with 2 keys
1
VZ310
Connection Assembly 63A
2 x (3 x 16mm² + 4 x 10mm²)
1
VZ708
Connection Assembly 63A
2 x (3 x 16mm² + 2 x 10mm²)
1
VZ709
Coupling pieces for joining two enclosures

1 set
VZ703
Replacement cable entry plates top or bottom
With circular cut outs for cables and conduits
10
VZ706
Replacement cable entry plates top or bottom
With rectangular cut outs for cable trunking
10
VZ707
Blanking clips to blank out a complete row
1/2 module (8.7mm)
1 module (17.5mm)
18 module
50
50
10
P031F
P032F
JP015

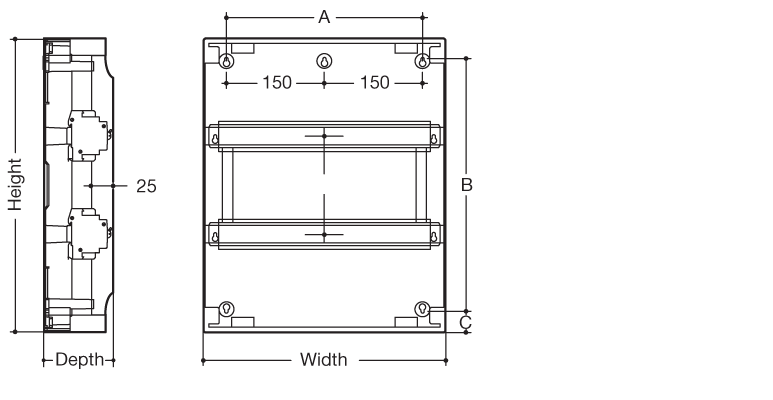

Vega Surface Mounting Dimensions

Click here for larger image
Part No:Width (mm)Height (mm)Depth (mm)ABC
VB18B
370
300
145
300
236
32
VB18R
370
300
145
300
236
32
VB36B
370
450
145
300
386
32
VB36R
370
450
145
300
386
32
VB54B
370
600
145
300
536
32
VB54R
370
600
145
300
536
32
