Vector II Weather Proof

Here we provide you with part numbers, product descriptions and dimensions for our Vector II Weather Proof Enclosure range.

Descriptions & Part Numbers

Enclosures
DescriptionMoulded blanks
(In front cover)		Cat ref.
1 row, 3 modules N: 1 x 25 + 3 x 16, E: 1 x 25 + 5 x 16
2 x 1/2
VE103U
1 row, 6 modules N: 1 x 25 + 5 x 16, E: 1 x 25 + 7 x 16
2 x 1
VE106U
1 row, 10 modules N: 1 x 25 + 9 x 16, E: 1 x 25 + 11 x 16
2 x 1
VE110U
1 row, 12 modules N: 1 x 25 + 10 x 16, E: 1 x 25 + 13 x 16

VE112U
2 rows, 24 modules N: 1 x 25 + 16 x 16, E: 1 x 25 + 16 x 16

VE212U
3 rows, 36 modules N: 1 x 25 + 19 x 16, E: 1 x 25 + 19 x 16

VE312U
Earth and Neutral for TP&N Connection Assembly
DescriptionCat ref.
3 x (3 x 16mm² + 2 x 10mm²) 270mm wide
N: 1 x (5 x 16mm² + 6 x 10mm²)
In: 63A
To fit 12 module wide enclosure only
VZ428
Earth and Neutral for Single Phase Connection Assembly
DescriptionCat ref.
2 x (3 x 16mm² + 4 x 10mm²) 270mm wide
In: 63A
To fit 12 module wide enclosure only
VZ403
Key Lock
DescriptionCat ref.
For all enclosures with 2 keys
VZ311
Sliding Support
DescriptionCat ref.
1 Set = 2 Supports
for fixing of additional terminal supports
in bottom part of enclosure (VE112U and above)
VZ744

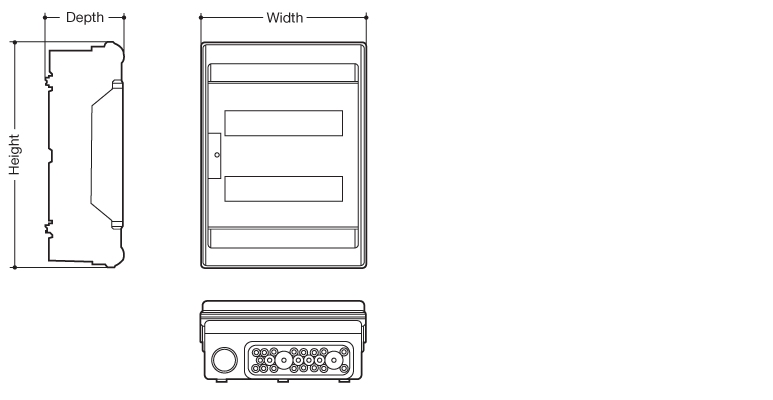

Vector II Weather Proof Dimensions

Click here for larger image
Part No:Width (mm)Height (mm)Depth (mm)
VE103U
110
175
93
VE106U
164
190
113
VE110U
236
210
114
VE112U
310
302
151
VE212U
310
427
151
VE312U
310
552
151
