Prefabricated wiring system software

klik 7 pin software
klik 7 pin outputWe have developed a klik 7 pin software package for prefabricated wiring systems to ensure that klik 7 pin meets the requirements of BS 8488 and the wiring regulations.

The advantages of prefabricated wiring systems are well documented with time savings of up to 75 percent claimed on site. To meet the British Standard however you must provide system design information to both validate the design and ensure that it is installed correctly.

Designing and validating a system can take hours or even days of time. For a klik 7 pin project our software will ensure that we provide the customer with fully compliant designs that are easy to follow during installation.

The software database contains all of a project’s information including; customer, client, design team and delivery details. Any amendments are automatically stored with previous versions all kept for reference and design parameters such as ceiling height are simply added. Any revisions are automatically stored so that all of the versions are kept for a project.

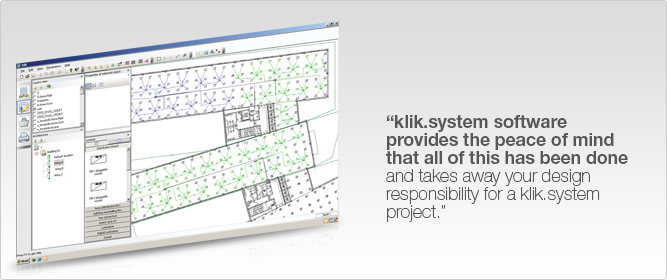

To use the system, layout drawings are imported into the software as a .dwg file and the klik 7 pin products are then placed onto this to build the design. As part of this process the software will automatically select the correct cables depending on their function. It will also calculate all of the cable lengths allowing for differences in ceiling and slab height and any switch positions and also their cross sectional areas to take account of the length and characteristics of the circuit.

Having designed the system a quotation is produced which can be broken down by part type or area and a project part referencing system allows you to order parts of the system to suit the different phases of a project.

All of the quotations, part lists by area or section and electrical reports can be printed off for reference. The electrical reports detail the design information for the project to help both installation and the final inspection since they contain details such as the designed maximum Zs Volt drop and testing point information.

Stephen Dyson klik 7 pin Project Product Manager: “In the past there have been some serious safety concerns with prefabricated wiring systems including reversed polarity, under rated couplers and incorrectly sized wiring sections. For this reason BS 8488-1 was introduced and then amended to become BS 8488:2009+1:2010. Not only must all of the system components meet individual product tests, but any system must provide instruction for safe use, system design information to validate conformity with BS 7671 and information to enable inspection and testing.”

“With a number of different calculations needed for any cable and plug in connection, that then need to be checked and clearly labeled, this is an onerous task. klik 7 pin software provides the peace of mind that all of this has been done and takes away your design responsibility for a klik 7 pin project prefabricated wiring system.”
6674001.6724
Posted: 28th January 2013
